MMP Logistics

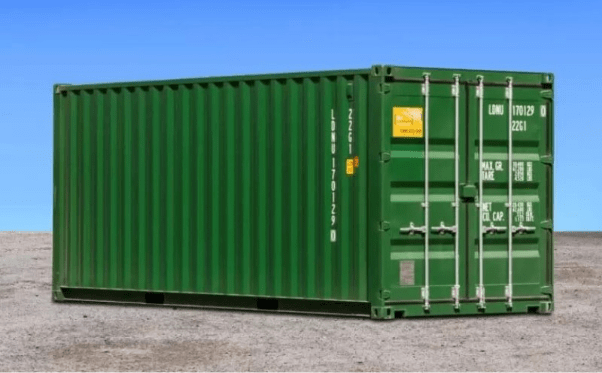

General Purpose Container (GP)

Type of
Container		 Internal
Dimension (mm)		 Door
Opening (mm)		 Load
Capacity (㎥)		 Container Tare
Weight (kg)		 Max Pay
Load (Kg)		 Max Gross
Weight (Kg)
20GP
  • L : 5,898
  • W : 2,352
  • H : 2,390
  • W : 2,340
  • H : 2,280
 33.2 2,250 21,750 24,000
40GP
  • L : 12,032
  • W : 2,352
  • H : 2,390
  • W : 2,340
  • H : 2,280
 67.6 3,740 26,740 30,480
40HC
  • L : 12,032
  • W : 2,352
  • H : 2,695
  • W : 2,340
  • H : 2,585
 76.3 3,940 26,540 30,480
45HC
  • L : 13,556
  • W : 2,352
  • H : 2,698
  • W : 2,340
  • H : 2,585
 86 4,720 27,780 32,500

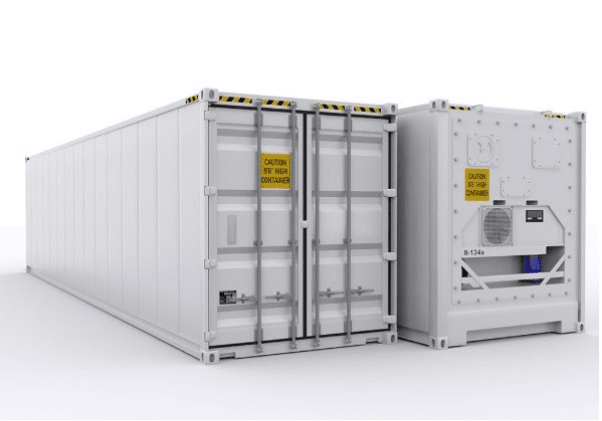

Refrigerated Container

Type of
Container		 Internal
Dimension (mm)		 Door
Opening (mm)		 Load
Capacity (㎥)		 Container Tare
Weight (kg)		 Max Pay
Load (Kg)		 Max Gross
Weight (Kg)
20RF
  • L : 5,454
  • W : 2,286
  • H : 2,245
  • W : 2,286
  • H : 2,225
 28.5 3,000 22,000 25,000
40RF
  • L : 11,583
  • W : 2,286
  • H : 2,215
  • W : 2,294
  • H : 2,248
 58.7 4,700 25,780 30,480
40RH
  • L : 11,583
  • W : 2,290
  • H : 2,542
  • W : 2,290
  • H : 2,507
 67.4 4,750 25,780 30,480

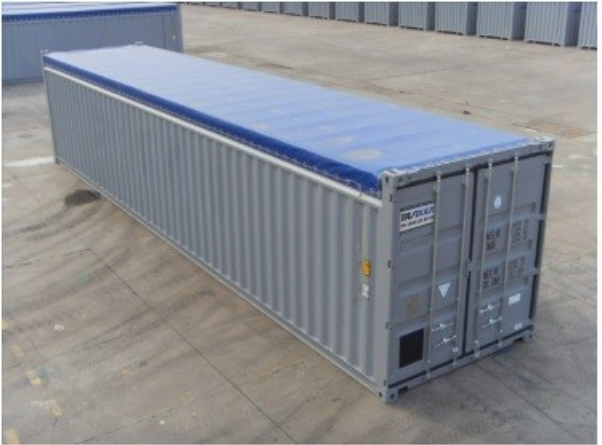

Open Top Container

Type of
Container		 Internal
Dimension (mm)		 Door
Opening (mm)		 Load
Capacity (㎥)		 Container Tare
Weight (kg)		 Max Pay
Load (Kg)		 Max Gross
Weight (Kg)
20OT
  • L : 5,889
  • W : 2,345
  • H : 2,312
  • W : 2,335
  • H : 2,227
 31.8 2,250 21,980 24,000
40OT
  • L : 12,044
  • W : 2,350
  • H : 2,348
  • W : 2,340
  • H : 2,280
 66.3 3,980 26,500 30,480

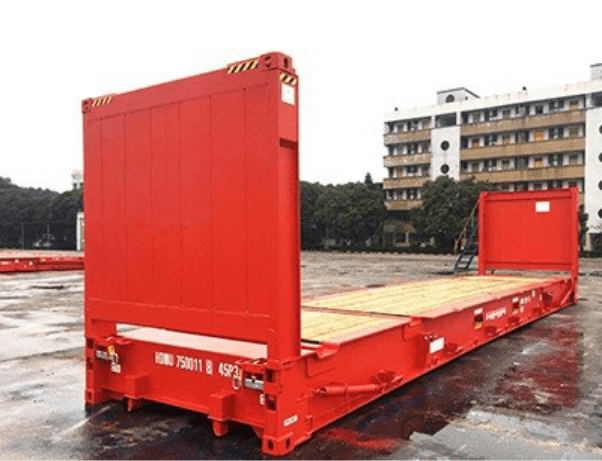

Flat Rack Container

Type of
Container		 Internal
Dimension (mm)		 Container Tare
Weight (kg)		 Max Pay
Load (Kg)		 Max Gross
Weight (Kg)
20FR
  • L : 5,612
  • W : 2,227
  • H : 2,213
 2,740 31,260 34,000
40FR
  • L : 11,770
  • W : 2,380
  • H : 1,955
 5,600 39,400 45,000
20' Mafi
Quantity : 46 		NODZ 2250346-2250515 Cargo Weight 25,000 Kg 55,116 lbs
  • Length 6.10 m 20'0"
  • Width 2.30 m 8'2"
  • Height 0.62 m 2'0"
NODZ 2300010-2350200 Cargo Weight 30,000 Kg 66,138 lbs
NODZ 2400106-2425167 Cargo Weight 40,000 Kg 88,184 lbs
30' Mafi
Quantity : 18 		NODZ 3500028-3600011 Cargo Weight 50,000 Kg 110,231 lbs
  • Length 9.10 m 30'0'"
  • Width 2.50 m 8'2'"
  • Height 0.62 m 2'0'"
NODZ 3100016-3100063 Cargo Weight 100,000 Kg 220,462 lbs
NODZ 2400106-2425167 Cargo Weight 120,000 Kg 264,554 lbs
40' Mafi
Quantity : 275 		NODZ 4400002-4450019 Cargo Weight 40,000 Kg 88,184 lbs
  • Length 12.19 m 40'0'"
  • Width 2.44 m 8'0'"
  • Height 0.75 m 2'5'"
NODZ 4500022-4500357 Cargo Weight 50,000 Kg 110,231 lbs
NODZ 4600000-4601291 Cargo Weight 60,000 Kg 132,277 lbs
NODZ 4700000-4700099 Cargo Weight 70,000 Kg 154,323 lbs
NODZ 4800009-4800441 Cargo Weight 80,000 Kg 176,369 lbs
NODZ 4100010-4100155 Cargo Weight 100,000 Kg 220,462 lbs
NODZ 4120017-4120207 Cargo Weight 120,000 Kg 264,554 lbs
60' Mafi
Quantity : 43 		NODZ 6900007-6900096 Cargo Weight 90,000 Kg 198,416 lbs
  • Length 18.50 m 60'0'"
  • Width 2.50 m 8'2'"
  • Height 0.85 m 1'7'"
NODZ 6100010-6100067 Cargo Weight 100,000 Kg 220,462 lbs
NODZ 6100072-6100220 Cargo Weight 100,000 Kg 220,462 lbs
NODZ 6120016-6120124 Cargo Weight 120,000 Kg 264,554 lbs
